SPECIFICATIONS

Specification

Material: ABS, Stainless Steel
Color: White
Process: Injection Molding
Style: Modern
Installation Required: Yes
Motor Type: Pure Copper Motor
Plug Type: US Standard
Voltage: 110V
Frequency: 60HZ
Power: 35W
Current: 0.13A
Air Volume: 220m³/h/129.41CFM
Noise: 31dB
Pressure: 150Pa
Speed: 2600 r/min
Applicable Area: 8-16m²/86.11-172.22ft²
Applicable Environmental Temperature: About 50℃/122℉
Power Cable Length: 50-60cm/19.69-23.62in
Air Vent Diameter: 9.5cm/3.74in
Product Size: 23*15*17cm/9.06*5.91*6.69in
Package Size: 24*18*18cm/9.45*7.09*7.09in
Gross Weight: 1.52kg/3.35lbs
Net Weight: 1.36kg/3lbs

Key Features

Made to Last: Made of high-quality ABS and treated with an injection molding process, this product has a sturdy structure and is impact-resistant, ensuring a long service life.

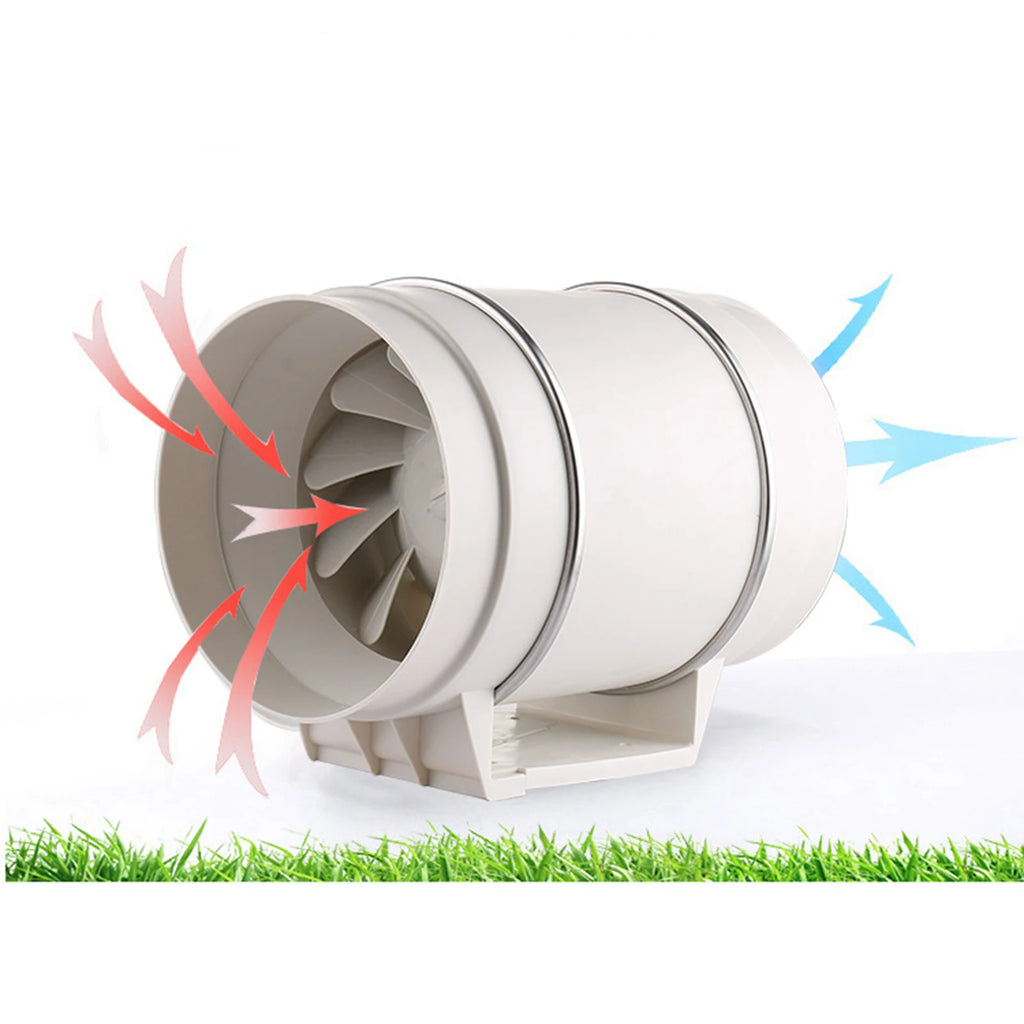

High-efficiency Ventilation: The all-copper motor provides 35W strong power, making its speed up to 2600r/min, air volume up to 129.41CFM, with strong suction and exhaust capacity, which can quickly and effectively discharge indoor air, improving air quality.

Low Noise: It works at a low noise of about 31 dB, equivalent to the sound of a whisper, creating a quiet and comfortable atmosphere for you.

High Safety: The all-copper motor is not easy to burn, the special junction box ensures stable and safe wiring, and the built-in overheating protection function also improves the safety of use.

Versatile Use: 86.11-172.22ft² of the applicable area makes it suitable for a wide range of ventilation needs in residential, commercial, and industrial locations.

Easy Assembly: Its simple structure helps you finish the installation quickly and use it in a short time.

Compact Design: This duct fan is compact (9.06*5.91*6.69in) and lightweight (3 lbs) enough to be installed in areas with little available space.

Effortless Cleaning: It has a smooth surface and a detachable structure, so you can easily wipe the dust or residue with a towel (not included).

Ideal Gift: With good performance and a modern appearance, it can be used as an ideal housewarming gift for parents, friends, and lovers so that they can enjoy a healthier and safer living environment.

Good Customer Service: We aim to provide quality products and services. If you have problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.

Details

Enhanced Base: The base has a reinforcement design, effectively enhancing the stability and firmness of the installation.

Stainless Steel Clamp: It makes the product structure more solid and its buckle design allows for easy installation.

How to Install

1.Loose the clamps and remove the main unit.
2.Choose the right place on the wall.
3.Install the base.
4.Connect pipes.
5.Insert the main unit.
6.Restore the fan.

Package Included

1* Air Duct Fan

Notes

1.Please turn the fan off immediately if the blades get stuck by other objects.
Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before
