SPECIFICATIONS

Product features:

1.24 hours daily recording as factory default setting, device users can customise the recording schedule;

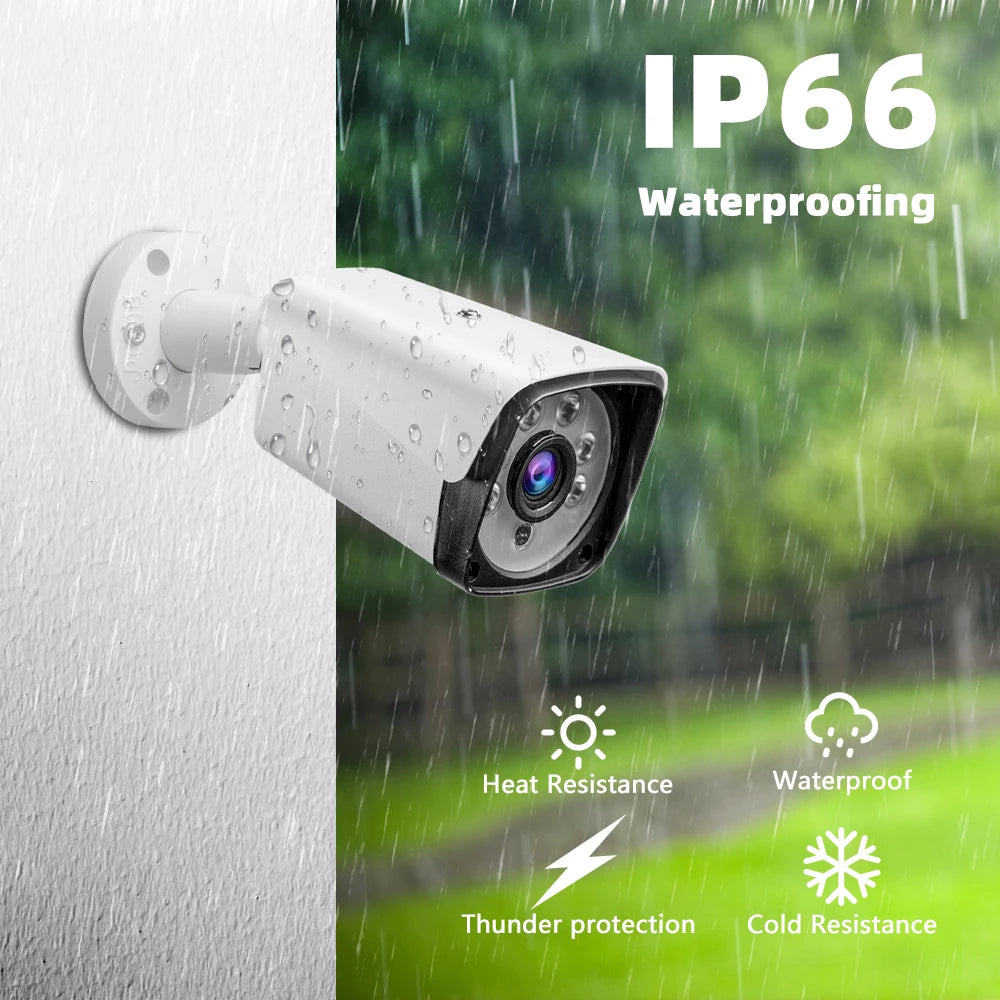

2. Day & Night Surveillance Kit comes with 4 full HD wireless cameras, IP66 waterproof;

3. Equipped with multiple features such as night vision (up to 65ft), live streaming, remote monitoring and motion detection alarms;

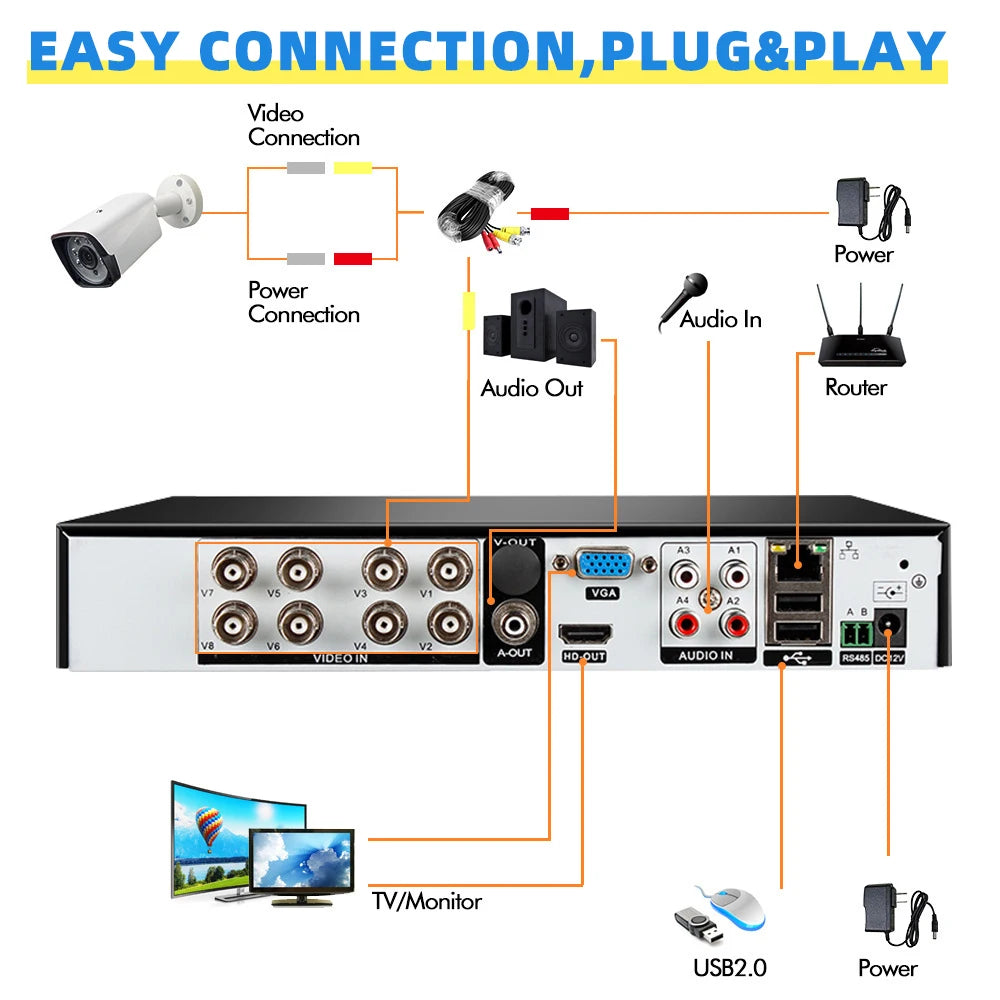

4. Installation: with auto pairing technology, plug the camera and DVR power supply into a nearby outlet, connect the DVR box to the monitor and get clear and crisp images smoothly during the day or night;

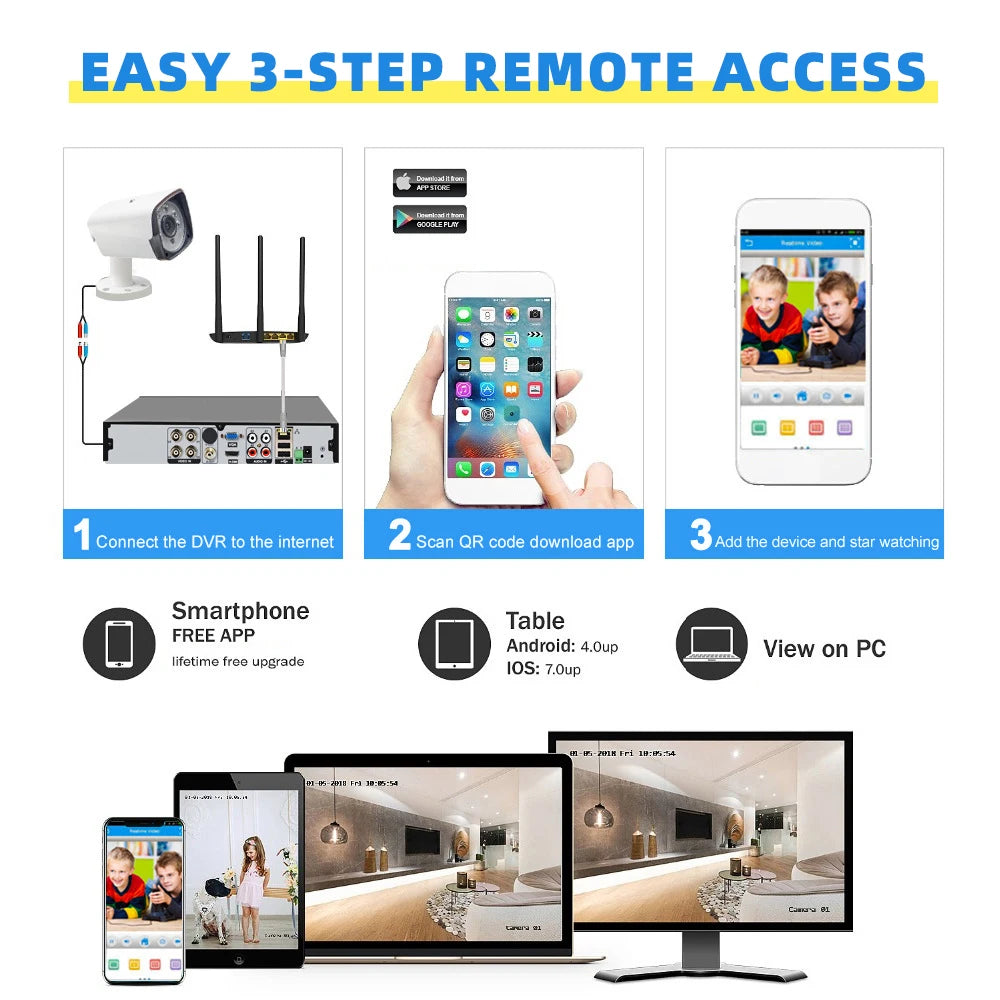

5.Remote monitoring and playback:Free application can be downloaded to remotely view and playback recordings(need to make sure the DVR is connected to the router via Ethernet cable).

Sourcing specifications: 4ch+1080p

Camera parameters:

Signal system: XVI/AHD/TVI/CVI/CVBS

Effective pixels: PAL/NTSC: 1920*1080 (supplier colour box marked 4K)

Minimum illumination: Colour: 0.1Lux@(F1.2, AGC ON), 0Lux with IR

B/W: 0.01Lux@(F1.2, AGC ON), 0Lux with IR

Photoresistor port: 1 photoresistor interface, support photoresist input signal and image, IR-CUT, infrared lamp linkage

Shutter: 1/50(1/60)sec. to 1/10,000 sec.

Day and night function: Support IR-CUT mechanical switching

Lens parameters: C/CS interface, M12 lens optional

Video output: 1080P@25fps

Power supply: DC12V ± 10%

Working environment: temperature -10 ℃ ~ 60 ℃, humidity less than 90% (no condensation)

Power Consumption: <5W

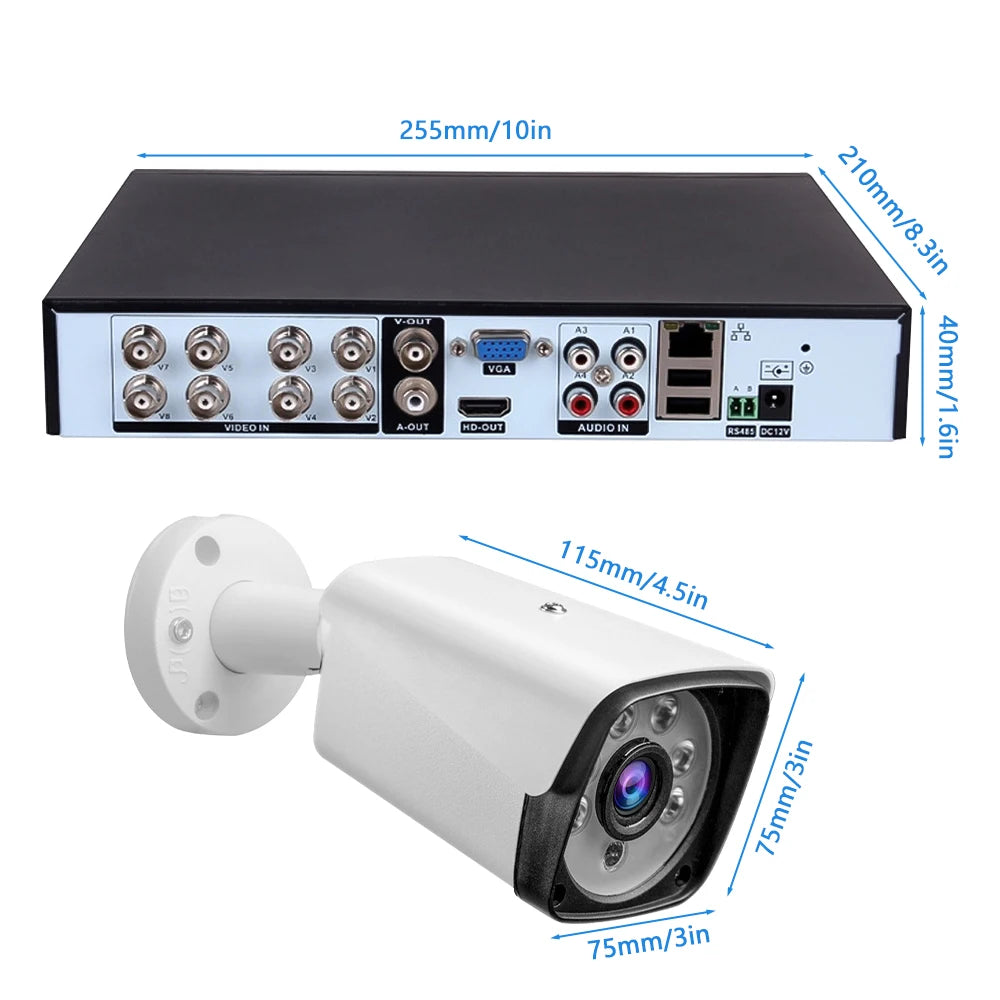

Size: 32mm * 32mm single board (compatible with 38 positioning holes)

Remarks: standard coaxial control, support coaxial upgrade, through the tail line short / OSD menu to achieve signal switching

VCR parameters:

Screen display: 1/4 screen (coaxial input mode as an example of other according to the channel mode)

Monitor quality: VGA (up to 1080P) / HDMI (up to 1080P)

Multi-mode input: coaxial, hybrid, network

Motion Detection: 192 (16*2) detection areas can be set per screen

Recording mode: manual, alarm, dynamic detection, timing

Local playback: 2/4-way

Video query: time point search, calendar search, event search, channel search

Video saving: local hard disc, network

Video input interface: 4-way BNC

Video output interface: 1-way VGA, 1-way HDMI

PTZ control: support a variety of PTZ protocol

USB interface: 2 USB interfaces

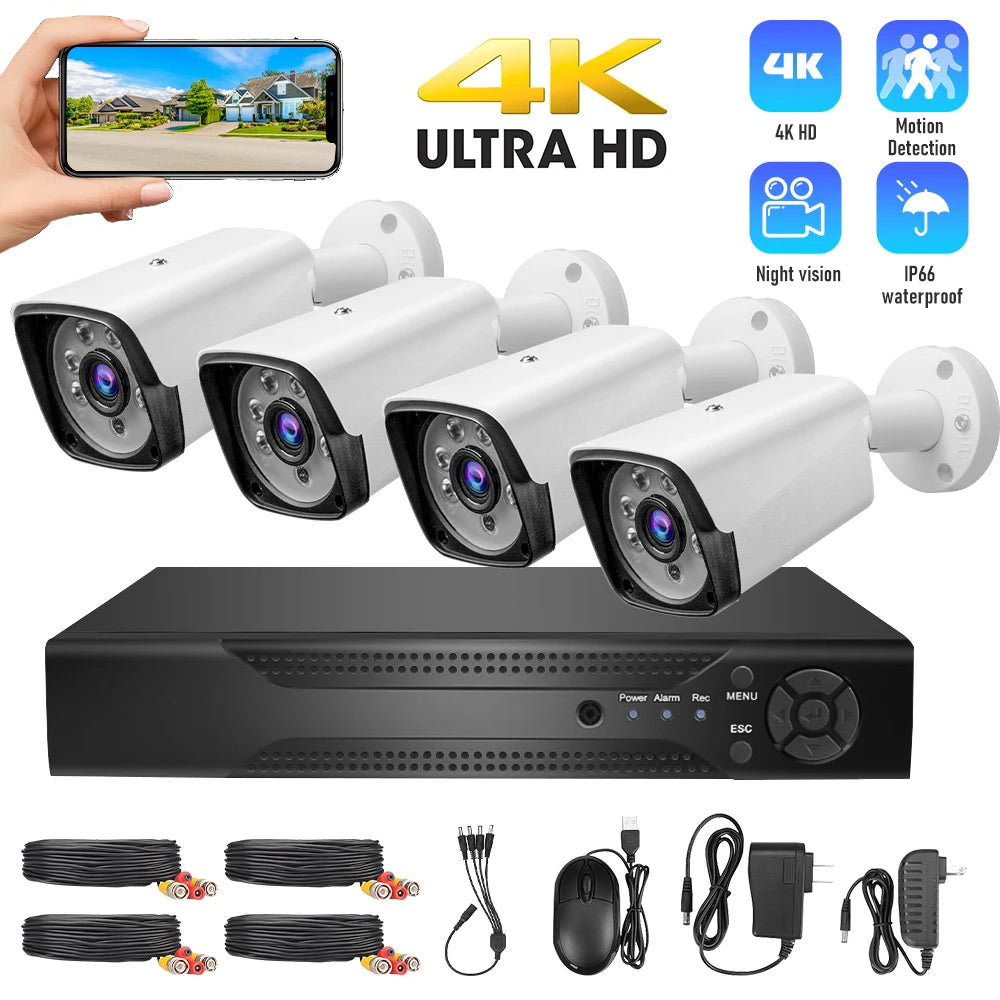

Product list:

Camera*4

DVR*1

Camera BNC Extension Cable*4

Mouse*1

VCR Power Supply (U.S.G.)*1

Camera Power Supply (U.S.G.)*1

1-part 4DC Power Shunt Cable*1

Model Number: Surveillance Camera Set

PCS of Camera: 4PCS

Power Consumption: <5W

Power supply: DC12V ± 10%

Resolution: 5MP

Screen display: 1/4 screen (coaxial input mode as an example of other according to the channel mode)

USB interface: 2 USB interfaces
