SPECIFICATIONS

Plug-n-Play Thermostat Dual Relay Heating and Cooling Temperature Controller for Carboy, Fermenter, Greenhouse, Terrarium, Home Brewing

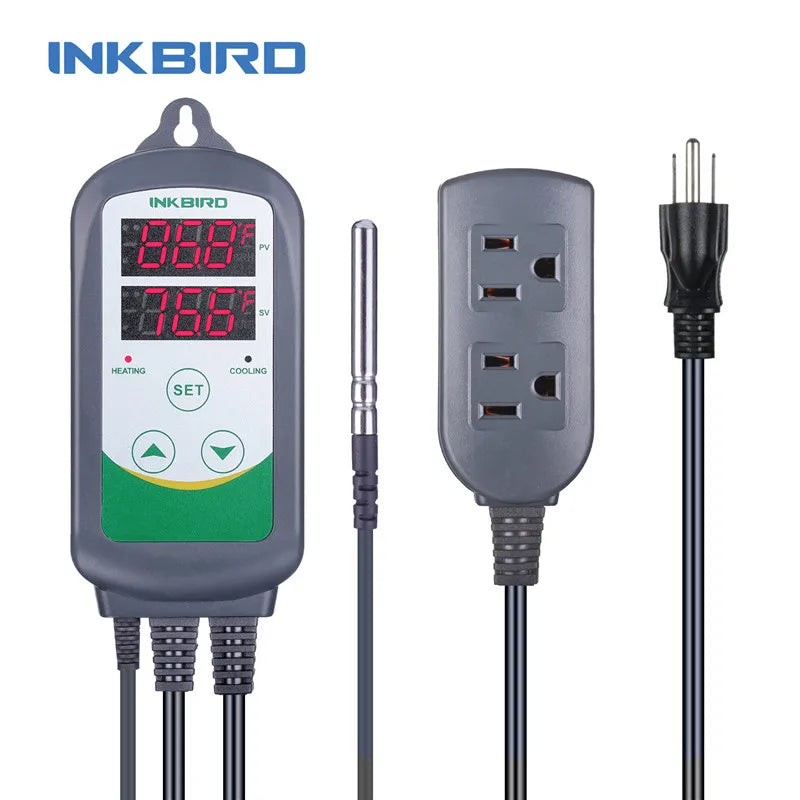

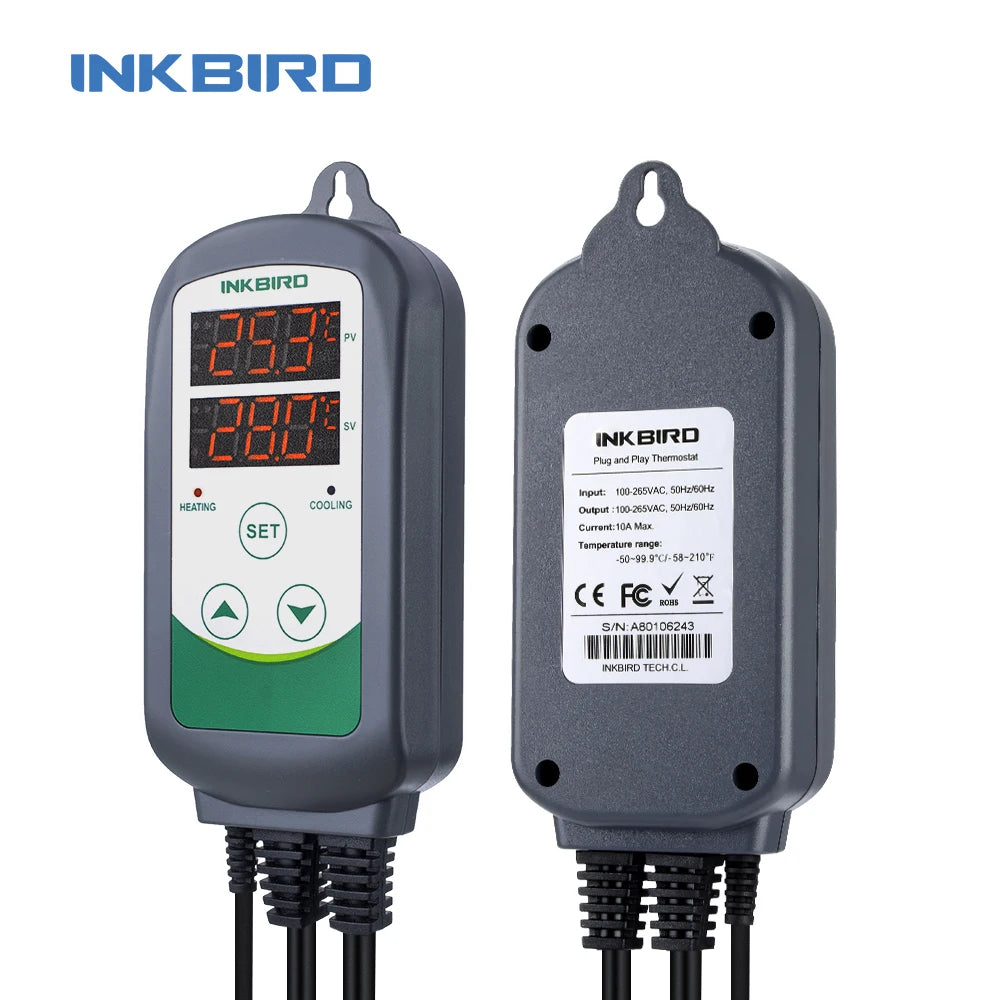

ITC-308 is an easy-to-use, safe and reliable dual relay output temperature controller. Designed with compressor delay protection for refrigeration, high and low temperature alarm, and sensor fault alarm, which makes the ITC-308 more safe and reliable. Functions such as temperature calibration, separately set differential for refrigeration and heating, enable more accurate temperature control.

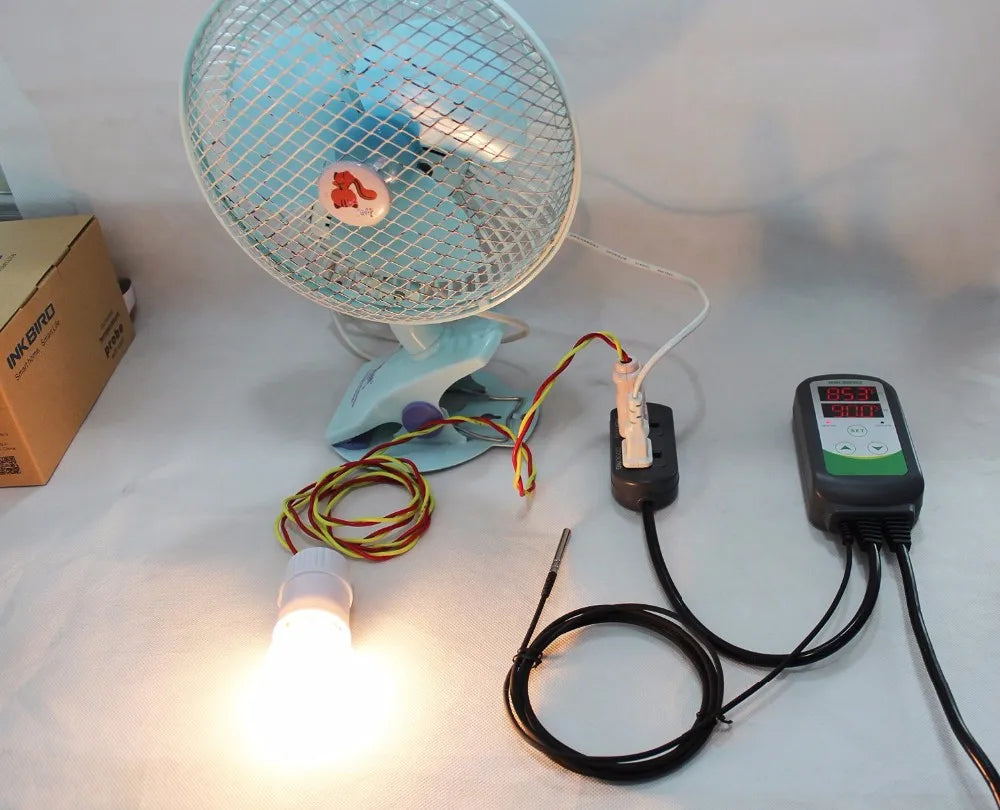

With large output power 1,000W(110V) /2,000W(220V), it’s suitable for most applications.It can be used as Over-temperature protection and automatic temperature control system for various electric appliances such as equipment for home-brew, aquarium, pet breeding, incubation, BBQ, seedling heat mats, oven temperature control, terrestrial heat control, constant temperature cycle of heating pump, culture fermentation, accelerating germination, electric radiator, electric oven, etc.

Main features

• Plug and play design, easy to use;

• Dual relay output, be able to connect with refrigeration and heating equipment at the same time;

• Support reading with Centigrade or Fahrenheit unit;

• Maximum output load: 1000W(110V)/2000W(220V);

• Dual display window, be able to display measured temperature and set temperature at the same time;

• Temperature calibration;

• Compressor delay protection for refrigeration control;

• High and low temperature alarms are available;

• Over-temperature and sensor fault alarm;

• Heating/Cooling differential function could be set separately for refrigeration and heating to protect temperature controller from violent change.

Specification

• Temperature Control Mode :On/Off Control, Heating and Cooling

• Temperature Control Range : -50~99 °C / -58~210 ° F

• Temperature Resolution: 0.1 ° C / 0.1° F

• Temperature Accuracy: ±1°C (-50 ~ 70°C) / ±1°F (-50 ~ 160° F)

• Ambient Temperature: -30~ 75 ° C / -22~ 167 ° F

• Input Power: 100 ~240VAC, 50Hz/60Hz

• Temperature Control Output: Max. 10A, 100V ~240V AC

• Input Power Cable Length: 1.5m (5ft)

• Output Power Cable Length: 30cm (1ft)

• Buzzer Alarm: High and Low Temperature Alarm

• Sensor Type: NTC sensor (Including)

• Sensor Length: 2m / 6.56ft

• Relay Capacity: Cooling/ Heating (10A, 100-240VAC)

• Storage Temperature: -20~ 60 ° C / -4~ 140 ° Storage Humidity: 20~85% (No Condensate)

• Dimension Body: 140x68x33mm (5.5x2.7x1.3inch)

• Warranty: 1Year

Package:

• 1 x Temperature controller with outlet,

• 1x 1.97" Female to Male NTC Sensor

• 1 x English Manual

Buzzer Alarm: High and Low Temperature Alarm

Display Size: 2.0 - 3.9 Inches

Display Type: Digital

Input Power: 100 ~240VAC, 50Hz/60Hz

Input Power Cable Length: 1.5m

Is Smart Device: No

Max Measuring Temperature: 70°C- 99°C

Output Power Cable Length: 30cm

Power Type: None

Sensor Type: NTC sensor (Including)

Style: Standing and Wall Hanging

Temperature Control Mode: On/Off Control, Heating and Cooling

Temperature Control Output: Max. 10A, 100V ~240V AC

Temperature Control Range: -50~99 Centigrade

Temperature Resolution: 0.1

Theory: Temperature Controller

Tips: Please Get Code/Coupon From Detail Page

Use: Household

Warranty: 1 Year
